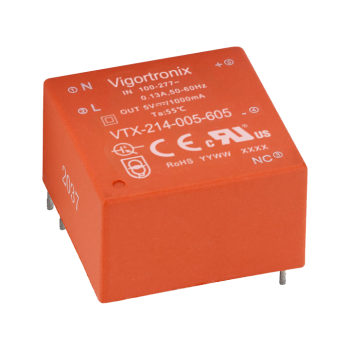

5 Watt Compact Converter (6 Series)

Overview

• 5W Small Compact Size 25.4 x 25.4 x 17.6mm
• Wide AC & DC Input 85V to 305VAC
• Temperature Range -40OC to +85OC
• Output Range: 3.3V – 24VDC
• Low Standby Power <0.1W
• Fully Isolated Pri – Sec >4200Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368, EN61558, EN60335
• 3 Year Warranty

Datasheet Footprint CAD File

Description

Part NumberPower RatingOutput Voltage (VDC)Output Current (mA)
VTX-214-005-60353.31515
VTX-214-005-605551000
VTX-214-005-60959556
VTX-214-005-612512417
VTX-214-005-615515333
VTX-214-005-624524208
