Description
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-214-005-503 | 5 | 3.3 | 1515 |
| VTX-214-005-505 | 5 | 5 | 1000 |
| VTX-214-005-509 | 5 | 9 | 556 |
| VTX-214-005-512 | 5 | 12 | 417 |
| VTX-214-005-515 | 5 | 15 | 333 |
| VTX-214-005-524 | 5 | 24 | 208 |

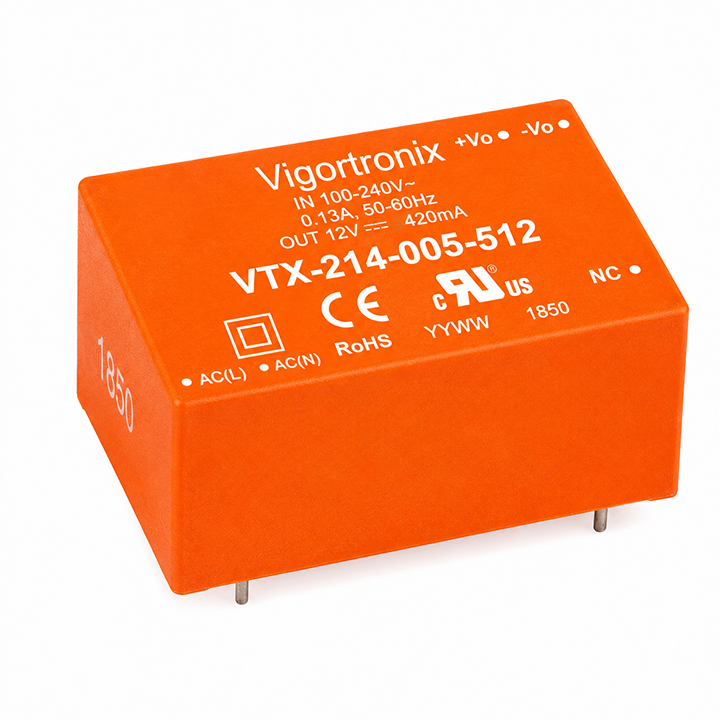

5 Watt Compact Converter (5 Series)
Overview
• 5W Small Compact Size 37.0 x 24.5 x 18.0mm
• Wide AC & DC Input 85V to 264VAC
• Temperature Range -40OC to +70OC
• Output Range: 3.3V – 24VDC
• Output short circuit, Over-current protection
• Low Standby Power <0.2W
• Fully Isolated Pri – Sec >4000Vrms
• Insulation: Class II
• Materials: UL94-V0
• UL/EN/IEC62368, EN55032 Class B
