Description
| Part Number | Power Rating | Output Voltage (VDC) | Output Current (mA) |
|---|---|---|---|
| VTX-210-065-005 | 50 | 5 | 10000 |
| VTX-210-065-009 | 60 | 9 | 6667 |
| VTX-210-065-012 | 65 | 12 | 5417 |
| VTX-210-065-015 | 65 | 15 | 4333 |
| VTX-210-065-024 | 65 | 24 | 2708 |
| VTX-210-065-048 | 65 | 48 | 1354 |

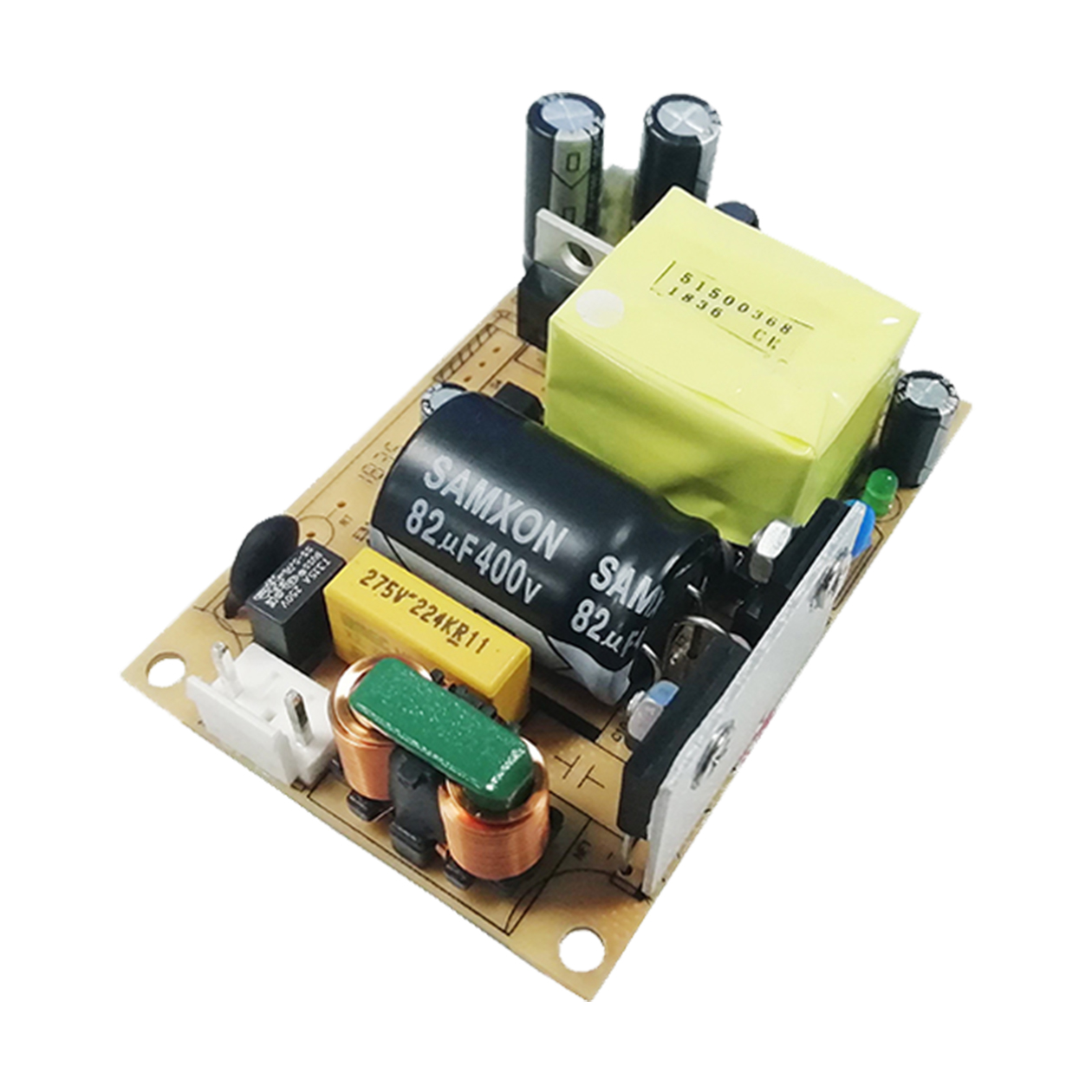

65 Watt PCB Open Frame AC-DC Power Supply
Overview
• 65W High Power Density 76.2 x 50.8 x 30.0mm
• Wide AC & DC Input 85V to 264VAC
• Temperature Range -25OC to +70OC
• Protection: OVP, OCP and Output Short Circuit
• Output Range: 5V – 48VDC
• Low Standby Power <0.5W
• Fully Isolated Pri – Sec >3000Vrms
• Insulation: Class II
• Materials: UL94-V0
• IEC/EN/UL62368
• 2 Year Warranty
