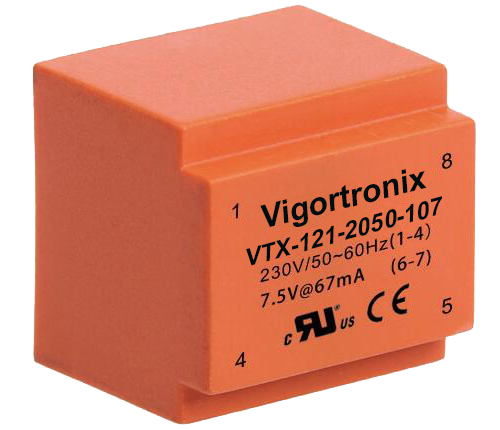

Encapsulated PCB Transformers – EE20 0.35-0.5VA
- High Quality Encapsulated Transformer
- Single Primary/Secondary windings
- Power: 0.35/0.5 VA 50/60Hz
- Temperature Class: – Class B (130OC)
- Ambient temperature: +70OC
- Dielectric Strength Pri~Sec: 4.2KVrms
- Dielectric Strength Sec ~ Sec: >1.0KVrms
- Manufactured and tested in accordance to UL506, EN61558, EN60950, CE
Datasheet
Encapsulated PCB Transformers – EE20 0.35-0.5VA
Description
| Part Number | Power Rating | Input Voltage (VAC) | Output Voltage (VAC) | Output Current (mA) |
| VTX-121-2035-106 | 0.35 | 230 | 6 | 58 |
| VTX-121-2035-108 | 0.35 | 230 | 8 | 44 |
| VTX-121-2035-109 | 0.35 | 230 | 9 | 39 |
| VTX-121-2035-112 | 0.35 | 230 | 12 | 29 |
| VTX-121-2035-115 | 0.35 | 230 | 15 | 23 |
| VTX-121-2035-118 | 0.35 | 230 | 18 | 19 |
| VTX-121-2035-124 | 0.35 | 230 | 24 | 14 |
| VTX-121-2035-206 | 0.35 | 230 | 2 x 6 | 58 |
| VTX-121-2035-208 | 0.35 | 230 | 2 x 8 | 44 |
| VTX-121-2035-209 | 0.35 | 230 | 2 x 9 | 39 |
| VTX-121-2035-212 | 0.35 | 230 | 2 x 12 | 29 |
| VTX-121-2035-215 | 0.35 | 230 | 2 x 15 | 23 |
| VTX-121-2035-218 | 0.35 | 230 | 2 x 18 | 19 |
| VTX-121-2035-224 | 0.35 | 230 | 2 x 24 | 14 |
| VTX-121-2050-106 | 0.5 | 230 | 6 | 83 |
| VTX-121-2050-108 | 0.5 | 230 | 8 | 63 |
| VTX-121-2050-109 | 0.5 | 230 | 9 | 55 |
| VTX-121-2050-112 | 0.5 | 230 | 12 | 42 |
| VTX-121-2050-115 | 0.5 | 230 | 15 | 33 |
| VTX-121-2050-118 | 0.5 | 230 | 18 | 28 |
| VTX-121-2050-124 | 0.5 | 230 | 24 | 21 |
| VTX-121-2050-206 | 0.5 | 230 | 2 x 6 | 83 |
| VTX-121-2050-208 | 0.5 | 230 | 2 x 8 | 63 |
| VTX-121-2050-209 | 0.5 | 230 | 2 x 9 | 55 |
| VTX-121-2050-212 | 0.5 | 230 | 2 x 12 | 42 |
| VTX-121-2050-215 | 0.5 | 230 | 2 x 15 | 33 |
| VTX-121-2050-218 | 0.5 | 230 | 2 x 18 | 28 |
| VTX-121-2050-224 | 0.5 | 230 | 2 x 24 | 21 |
