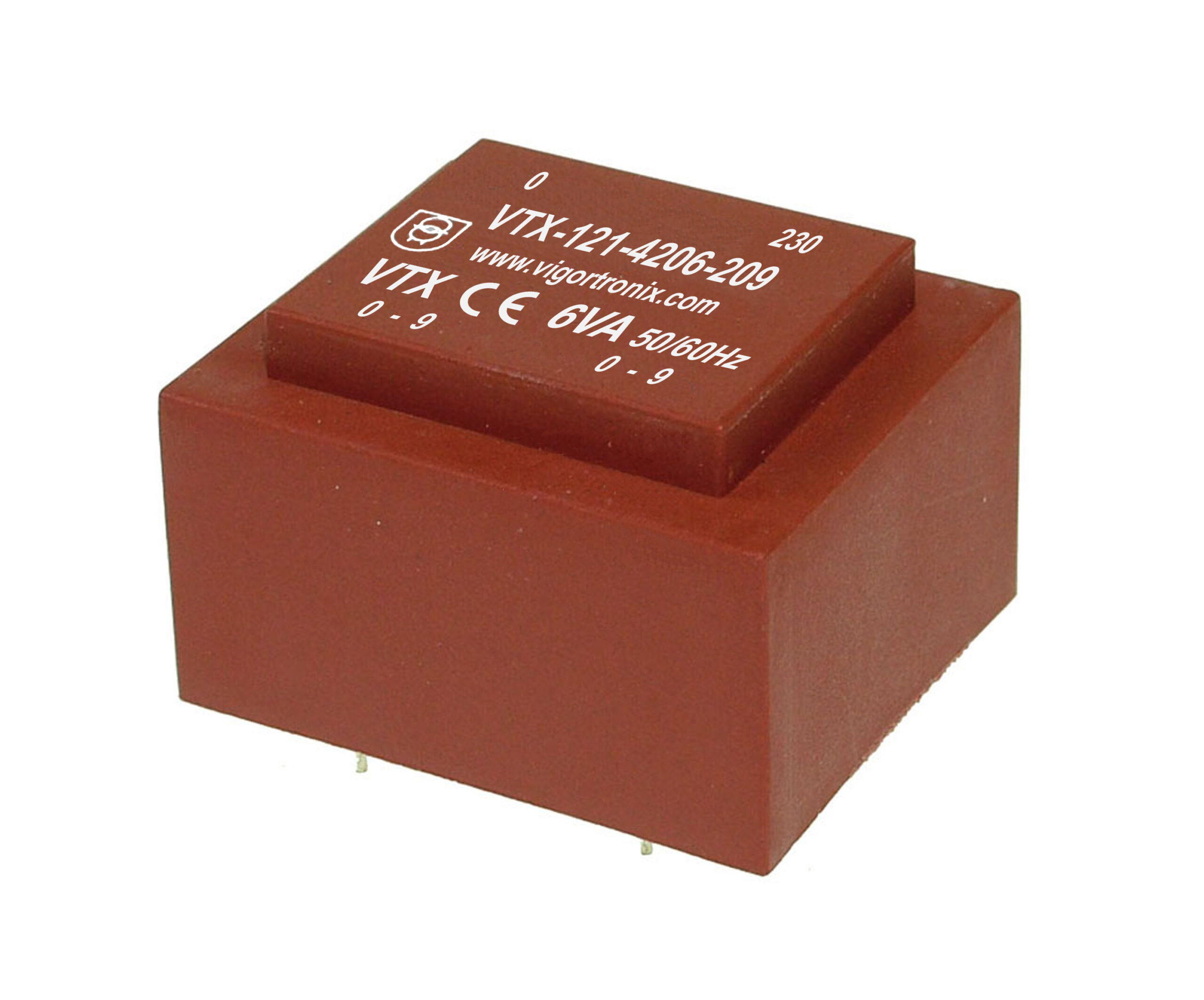

Encapsulated PCB Transformers – EI42 5-6VA
- High Quality Encapsulated Transformer
- Single/Dual Primary Winding
- Power: 3.2 ~ 4.5 VA 50/60Hz
- Temperature Class:- Class B (130OC)
- Ambient Temperature: +70OC
- Dielectric Strength: 4200Vrms
- Materials: UL94-V0
- Manufactured and tested in accordance to EN61558, EN60950, CE
Datasheet
Encapsulated PCB Transformers – EI42 5-6VA
Description
| Part Number | Power Rating | Input Voltage (VAC) | Output Voltage (VAC) | Output Current (mA) |
| VTX-121-4206-206 | 6 | 230 | 2 x 6 | 500 |
| VTX-121-4206-209 | 6 | 230 | 2 x 9 | 333 |
| VTX-121-4206-212 | 6 | 230 | 2 x 12 | 250 |
| VTX-121-4206-215 | 6 | 230 | 2 x 15 | 200 |
| VTX-121-4206-218 | 6 | 230 | 2 x 18 | 166 |
| VTX-121-4206-224 | 6 | 230 | 2 x 24 | 125 |
| VTX-121-4206-406 | 6 | 2 x 115 | 2 x 6 | 500 |
| VTX-121-4206-409 | 6 | 2 x 115 | 2 x 9 | 333 |
| VTX-121-4206-412 | 6 | 2 x 115 | 2 x 12 | 250 |
| VTX-121-4206-415 | 6 | 2 x 115 | 2 x 15 | 200 |
| VTX-121-4206-418 | 6 | 2 x 115 | 2 x 18 | 166 |
| VTX-121-4206-424 | 6 | 2 x 115 | 2 x 24 | 125 |
