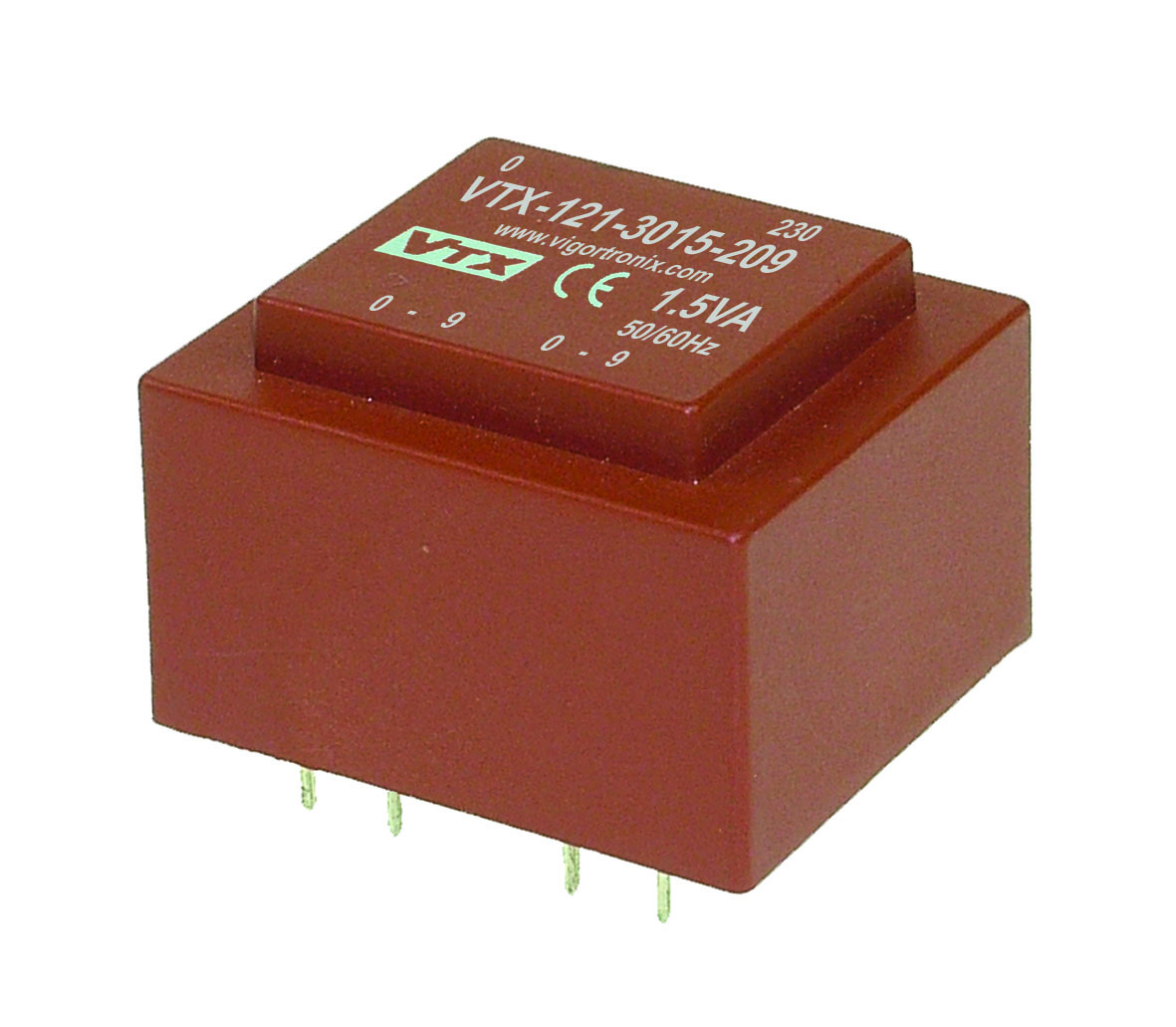

Encapsulated PCB Transformers – EI30 0.35-2.8VA

Overview

High Quality Encapsulated Transformer
Single/Dual Primary windings
Power: 0.5 ~ 3.0 VA 50/60Hz
Temperature Class: – Class B (130ºC)
Ambient temperature: +70ºC
Dielectric Strength: 4200Vrms
Inherently Short-circuit proof
Materials: UL94-V0
Manufactured and tested in accordance to EN61558, EN60950, CE

Datasheet

Description

Description

Part Number	Power Rating	Input Voltage (VAC)	Output Voltage (VAC)	Output Current (mA)
VTX-121-3005-206	0.5	230	2 x 6	50
VTX-121-3005-209	0.5	230	2 x 9	33
VTX-121-3005-212	0.5	230	2 x 12	25
VTX-121-3005-215	0.5	230	2 x 15	20
VTX-121-3005-218	0.5	230	2 x 18	17
VTX-121-3005-224	0.5	230	2 x 24	12
VTX-121-3015-203	0.5	230	2 x 3	250
VTX-121-3015-206	1.5	230	2 x 6	125
VTX-121-3015-2075	1.5	230	x 7.5	100
VTX-121-3015-209	1.5	230	2 x 9	83
VTX-121-3015-212	1.5	230	2 x 12	62
VTX-121-3015-215	1.5	230	2 x 15	50
VTX-121-3015-218	1.5	230	2 x 18	42
VTX-121-3015-224	1.5	230	2 x 24	31
VTX-121-3023-206	2.3	230	2 x 6	191
VTX-121-3023-2075	2.3	230	2 x 3	154
VTX-121-3023-209	2.3	230	2 x 9	127
VTX-121-3023-212	2.3	230	2 x 12	95
VTX-121-3023-215	2.3	230	2 x 15	76
VTX-121-3023-218	2.3	230	2 x 18	63
VTX-121-3023-224	2.3	230	2 x 24	48
VTX-121-3005-406	0.5	2 x 115	2 x 6	50
VTX-121-3005-409	0.5	2 x 115	2 x 9	33
VTX-121-3005-412	0.5	2 x 115	2 x 12	25
VTX-121-3005-415	0.5	2 x 115	2 x 15	20
VTX-121-3005-418	0.5	2 x 115	2 x 18	17
VTX-121-3005-424	0.5	2 x 115	2 x 24	12
VTX-121-3015-406	1.5	2 x 115	2 x 6	125
VTX-121-3015-4075	1.5	2 x 115	x 7.5	100
VTX-121-3015-409	1.5	2 x 115	2 x 9	83
VTX-121-3015-412	1.5	2 x 115	2 x 12	62
VTX-121-3015-415	1.5	2 x 115	2 x 15	50
VTX-121-3015-418	1.5	2 x 115	2 x 18	42
VTX-121-3015-424	1.5	2 x 115	2 x 24	31
VTX-121-3023-406	2.3	2 x 115	2 x 6	191
VTX-121-3023-409	2.3	2 x 115	2 x 9	127
VTX-121-3023-412	2.3	2 x 115	2 x 12	95
VTX-121-3023-415	2.3	2 x 115	2 x 15	76
VTX-121-3023-418	2.3	2 x 115	2 x 18	63
VTX-121-3023-424	2.3	2 x 115	2 x 24	48
