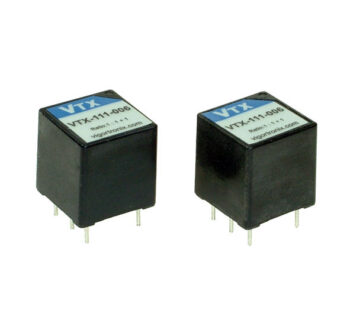

Encapsulated Pulse Transformer
- Open or Encapsulated PCB mounting
- Designed for Wide band and General Pulse applications.
- Ideal for Triac and Thyristor Control Systems
- Max Pulse Current 200mA (Peak)
- UL94-V0 rated materials
- RoHS & REACH Compliant
Datasheet
Encapsulated Pulse Transformer
Description
| Part Number | Ratio | Inductance Primary (mH) | Inductance Secondary (mH) | Inter-winding Capacitance (pF) |
| VTX-111-004 | 1:1 | 3 | 3 | 20 |
| VTX-111-006 | 1:1+1 | 3 | 3 + 3 | 30 |
| VTX-111-008 | 2:1+1 | 12 | 3 + 3 | 26 |
| VTX-111-010 | 2:1 | 12 | 3 | 19 |
| VTX-111-014 | 1:4 | 3 | 50 | 22.5 |
| VTX-111-041 | 4:1 | 50 | 3 | 22.5 |
| VTX-111-800 | 100:1 | 6 | - | 6 |
| VTX-111-042 | 1:1 | 3 | 3 | 5 |
| VTX-111-045 | 2:1 | 1.5 | 0.4 | 5 |
| VTX-111-047 | 2:1 | 12 | 3 | 5 |
| VTX-111-021 | 1ct:1 | 1 | 1 | 20 |
| VTX-111-022 | 1ct:1 | 2 | 2 | 20 |
| VTX-111-023 | 1ct:1 | 3 | 3 | 20 |
| VTX-111-024 | 1.2ct:1ct | 8.5 | 6 | 22.5 |
| VTX-111-025 | 1ct:1ct | 1 | 1 | 20 |
| VTX-111-026 | 1ct:1ct | 2 | 2 | 20 |
| VTX-111-027 | 1ct:1ct | 3 | 3 | 20 |
