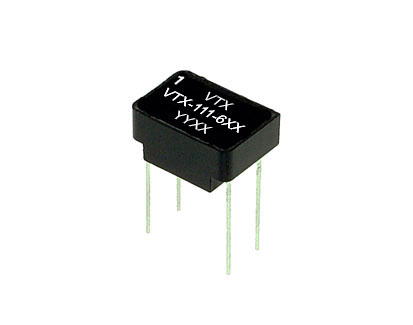

VTX-111-6xx Series Pulse Transformer

Overview

• Minature Pulse transformer
• Operating Temp. 0 ~ 70OC
• Isolation Voltage: 500VAC
• Various Winding Ratios
• Used for line coupling, matching or Isolation
• Temperature Range -25OC to +70OC
• Materials: UL94-V0

Datasheet

Description

Part NumberTurns RatioInductance Min (uH)Interwinding Capacitance Max (pF)DCR Max (Ohms)
VTX-111-46131:12500801.7
VTX-111-6011:1495200.8
VTX-111-6021:1220120.5
VTX-111-6031:1:12060721.5
VTX-111-6044:1:1644130.8
VTX-111-6051CT : 1CT3200751
