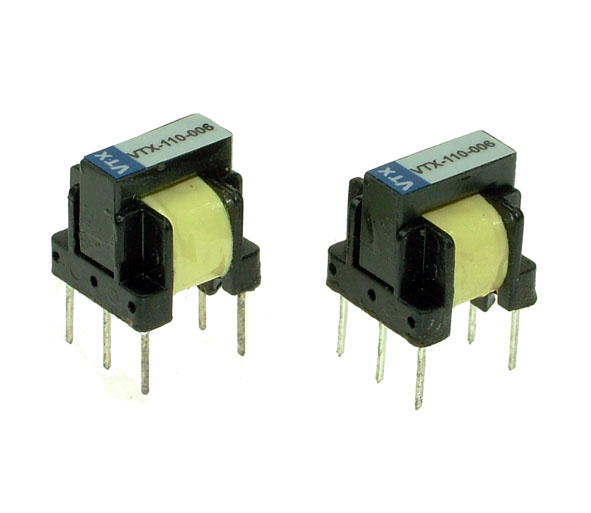

Open style Pulse Transformers

Overview

  • Open or Encapsulated PCB mounting
  • Designed for Wide band and General Pulse applications.
  • Ideal for Triac and Thyristor Control Systems
  • Max Pulse Current 200mA (Peak)
  • UL94-V0 rated materials
  • RoHS & REACH Compliant
Datasheet
SKU: 59aaa4f11a95

Description

Part Number Ratio Primary Ind. (mH) Min. Secondary Ind (mH) Min. Isolation Voltage Band Width
VTX-110-004 1:1 3 3 2.8KVac 3kHz ~ 1MHz
VTX-110-006 1:1+1 3 3 + 3 2.8KVac 3kHz ~ 1MHz
VTX-110-008 2:1+1 12 3 + 3 2.8KVac 3kHz ~ 1MHz
VTX-110-010 2:1 12 3 2.8KVac 3kHz ~ 1MHz
VTX-110-014 1:4 3 50 2.8KVac 3kHz ~ 1MHz
VTX-110-031 3:1 50 3 2.8KVac 3kHz ~ 1MHz
VTX-110-041 4:1 50 3 2.8KVac 3kHz ~ 1MHz
VTX-110-047 2:1 12 3 3.2KVac 3kHz ~ 1MHz
